STOE01
Features
- Good stability oven controlled crystal oscillator
Standard Specification
Model Item |
STOE01 | STOE02 | |
|---|---|---|---|
| Frequency range | 10~80MHz | ||
| Standard Frequency | 10, 13, 16.384, 20, 26, 38.88MHz | ||
| Frequency Stability |
vs Operation Temp. Range | ±5×10-8,±5×10-7Options See Table 2 | |
| vs Vcc Change ±5% | ±2×10-8 | ||
| vs Load Change ±10% | ±2×10-8 | ||
| vs Aging | ±4.6×10-6Ten years @25℃ after 30 days operation | ||
| Operation Temperature Range | Options See Table 2 | ||
| Supply Voltage | 5V, 9V, 12V | ||
| Current Consumption (@12Vcc) | 2.5Wmax at Turn-on, 1.0Wmax after warm up at 25℃ | ||
| Output | TTL/CMOS, Code is “T” | ||
| SSB Phase Noise (10MHz, typical) |
-90dBc@10Hz | ||
| -115dBc@100Hz | |||
| -140dBc@100Hz | |||
| -150dBc@100Hz | |||
| Warm-up Time@25℃Typical | ±1×10-7after 5 minutes | ||
| VCOCXO only | Frequency Tuning Range | ±3~±8ppm ±5ppm typical | |
| Control Voltage Range | 2.5V±2V | ||
| Slope Polarity | Positive | ||
| Linearity | 10%max | ||
| Package | 12A | 20A | |
| Storage Temperature Range | -40~+85℃ | ||

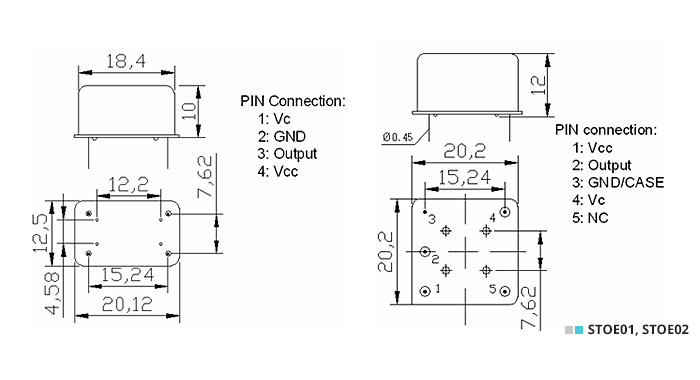

Dimensions[mm]
