STON01
Features
- Double Oven,Ultra-high stability,Small Package
Standard Specification
Model Item |
STON01 | ||
|---|---|---|---|
| Frequency range | 8~100MHz (Above 20MHz – using multiplication) |
||
| Standard Frequency | 10, 12.8, 16.384, 20, 25, 50, 80, 100MHz | ||
| Frequency Stability |
vs Operation Temp. Range | ±1×10-10for 100MHz ±5×10-10for 100MHz Options See Table 3 |
|
| vs Aging | ±0.2ppb/day, ±20ppb/year for 10MHz ±0.5ppb/day, ±50ppm/year for 100MHz after 30 days operation |
||
| deviation | 5X10-12 for 100MHz 1X10-11for 100MHz |
||
| Operation Temperature Range | Options See Table 3 | ||
| Supply Voltage | 3.3V, 5.0V (option code 3, 5) | ||
| Power Consumption | 4.0W Turn on 1.0W After warm up |
||
| Output | HCMOS, Sinewave | ||
| SSB Phase Noise (100MHz, typical, Multiplication 3) |
-103dBc@10Hz | ||
| -138dBc@100Hz | |||
| -152dBc@100Hz | |||
| -160dBc@100Hz | |||
| -163dBc@100Hz | |||
| Warm-up Time@25℃Typical | ±1×10-7after 3 minutes | ||
| G-sensitivity | 1ppb/G | ||
| Package | 20A | ||
| Storage Temperature Range | -55~+95℃ | ||

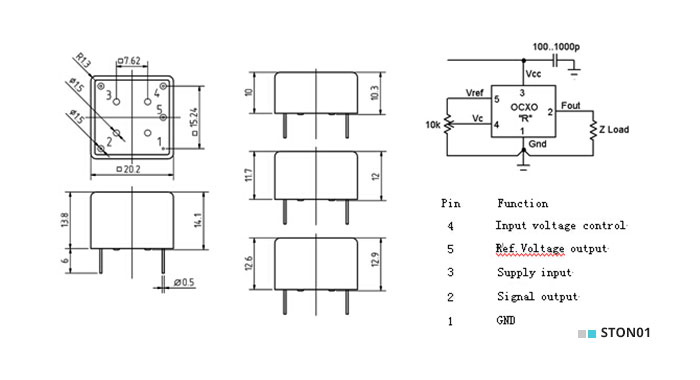

Dimensions[mm]
