STOQ01
Features
- High Frequency,High stability,Low Short-term Stability
Standard Specification
Model Item |
STOQ01 | ||
|---|---|---|---|
| Frequency range | 30~300MHz | ||
| Standard Frequency | 30, 50, 80, 100, 150, 200, 250, 300MHz | ||
| Frequency Stability |
vs Operation Temp. Range | ±3×10-9for 100MHz ±5×10-9for 100MHz Options See Table 3 |
|
| vs Aging | ±0.5ppb/day, ±50ppb/year for 100MHz ±2ppb/day, ±0.2ppm/year for 300MHz after 30 days operation |
||
| deviation | 1X10-11 for 100MHz, 2X10-11for 300MHz | ||
| Operation Temperature Range | Options See Table 3 | ||
| Supply Voltage | 3.3V, 5.0V, 12.0V (option code) | ||
| Power Consumption | 3.5W Turn on 1.0W After warm up |
||
| Output | HCMOS, Sinewave | ||
| SSB Phase Noise (100MHz, typical, Multiplication 3) |
-105dBc@10Hz | ||
| -135dBc@100Hz | |||
| -148dBc@100Hz | |||
| -155dBc@100Hz | |||
| Warm-up Time@25℃Typical | ±1×10-7after 3 minutes | ||
| G-sensitivity | 1ppb/G, 0.5ppb/G | ||
| Package | 36A, 25A, 20A, 25S | ||
| Storage Temperature Range | -55~+95℃ | ||

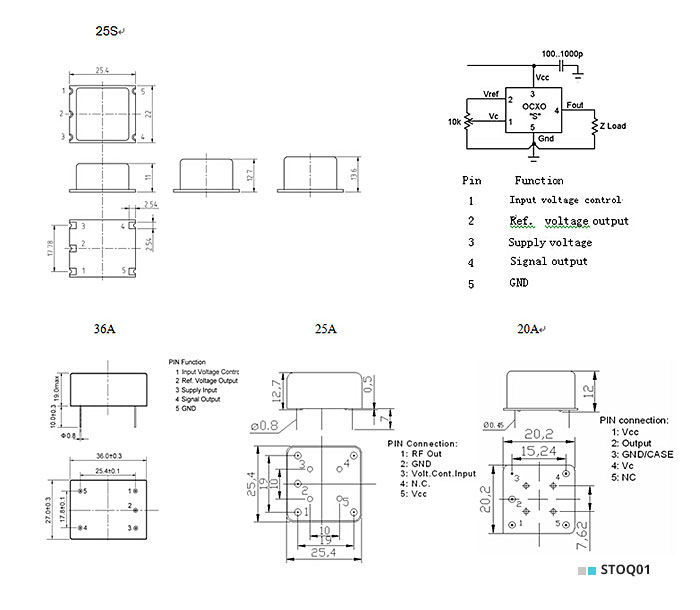

Dimensions[mm]
