STC2016
Features
- Ultra miniature and thin SMD crystal. (2.0 × 1.6 × 0.45 mm)
- High precision and high reliability
- High quality quartz crystal unit for OA (office automation), AV (audiovisual), Bluetooth and Wireless LAN applications.
Standard Specification
Model Item |
STC2016 |
|---|---|
| Frequency Range | 20 ~ 80MHz |
| Package size (L×W×H: mm) | 2.0×1.6×0.45 |
| Vibration mode | Fundamental |
| Frequency tolerance(at 25℃) | ±15ppm |
| Frequency stability vs Operation temperature range |
±15ppm / -20 ~ +70℃ (Ref. to 25℃) |
| ±25ppm / -40 ~ +85℃ (Ref. to 25℃) | |
| Series Resistance | 100Ω max (20~24MHz) |
| 80Ω max (24 ~ 26MHz) | |
| 60Ω max (26 ~ 80MHz) | |
| Load capacitance | Series, 8pF, 10pF, (As user spec) |
| Drive level | Typical 10㎼ (100㎼ max) |
| Storage Temperature Range | -40 ~ +85℃ |
| Aging | ±3ppm / year Maximum |
| Packing Unit | 3,000pcs / reel |

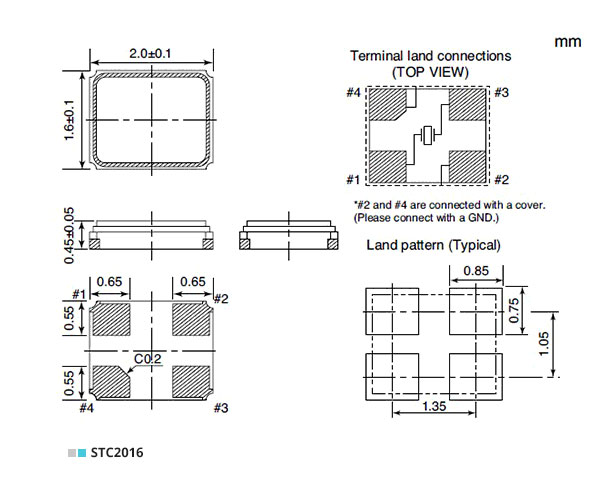

Dimensions[mm]
