STC6035
Features
- Compact and thin SMD crystal. (6.0 × 3.5 × 1.00 mm)
- High precision and high reliability
- High quality quartz crystal unit for mobile telecommunications as well as many other applications
Standard Specification
Model Item |
STC6035 | |
|---|---|---|
| Frequency Range | 8 ~ 40MHz | 40 ~ 67MHz |
| Package size (L×W×H: mm) | 6.0 × 3.5 × 1.00 | |
| Vibration mode | Fundamental | 3rd overtone |
| Frequency tolerance(at 25℃) | ±10ppm | |
| Frequency stability vs Operation temperature range |
±10ppm / -20 ~ +70℃ (Ref. to 25℃) | |
| ±25ppm / -40 ~ +85℃ (Ref. to 25℃) | ||
| Series Resistance | 150Ω max (8~9MHz), 80Ω max (9~12MHz) | |
| 60Ω max (12~16MHz), 40Ω max (16~40MHz) | ||
| 70Ω max (40~67MHz) | ||
| Load capacitance | Series, 16pF, 18pF, (As user spec) | |
| Drive level | Typical 100㎼ | |
| Storage Temperature Range | -40 ~ +85℃ | |
| Aging | ±3ppm / year Maximum | |
| Packing Unit | 1,000pcs / reel | |

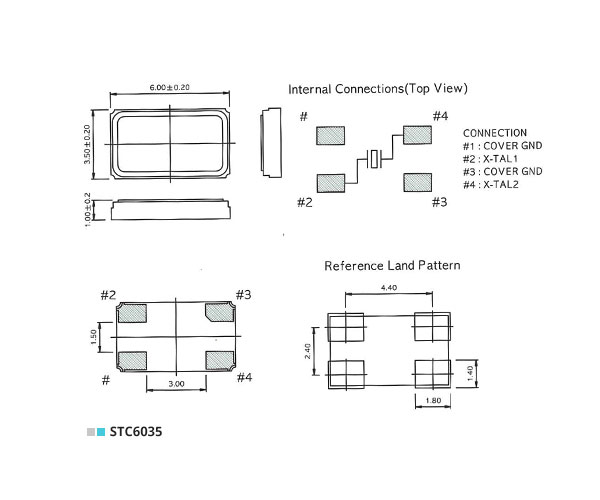

Dimensions[mm]
