TFS315(Tuning Fork)
Features
- 3215 size miniature and thin SMD crystal. (3.2 × 1.5 × 0.65 mm)
- High precision and high reliability
- High quality quartz crystal unit for mobile communications, PDA, wave clock, digital appliance
Standard Specification
Model Item |
TFS315(Tuning Fork) |
|---|---|
| Frequency Range | 32.768KHz |
| Package size (L×W×H: mm) | 3.2 × 1.5 × 0.65 |
| Frequency tolerance(at 25℃) | ±20ppm |
| Frequency stability vs Operation temperature range |
±20ppm / -20 ~ +70℃ (Ref. to 25℃) |
| ±20ppm / -40 ~ +85℃ (Ref. to 25℃) | |
| Series Resistance | 80KΩ max |
| Load capacitance | 9pF, 12.5pF |
| Drive level | 0.5㎼ max |
| Storage Temperature Range | -40 ~ +85℃ |
| Aging | ±5ppm / year Maximum |
| Packing Unit | 3,000pcs / reel |

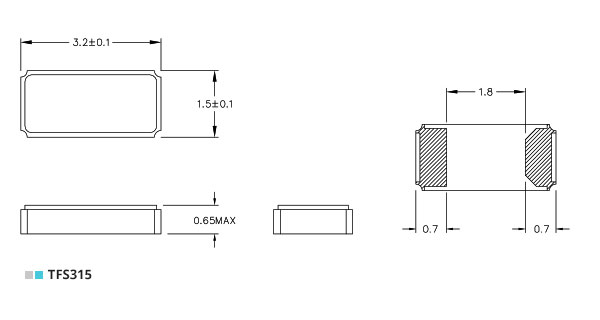

Dimensions[mm]
