STS2520

Features

  • Compact and light SMD crystal oscillator.
  • High reliability seam welded package and low supply voltage version available
  • Applications : PC, PDA, DVD, TV, camera module, etc.

Standard Specification

specification
Model
Item
STS2520 Unit Limit
Frequency Range 1.5 ~ 80MHz MHz
Package size (L×W×H:mm) 2.5×2.0×1.0 mm
Supply voltage +1.8 ~ +3.3 V ±5%
Operating temp. range -40~+125/-40~+105/-20~+70
Storage Temp. range -55 ~ +125
Frequency stability (Operation) ±100 / ±50 / ±30 / ±20 ppm
Load 15 pF Max
Current Consumption 9 mA Max
Output Level CMOS
‘0’ Level (V ol) 0.1 Vcc Vcc Max
'1' Level (V oh) 0.9 Vcc Vcc Min
Rise&Fall Time 10 Max
Start up time 10 Max
Standby function Available (Tri-state)

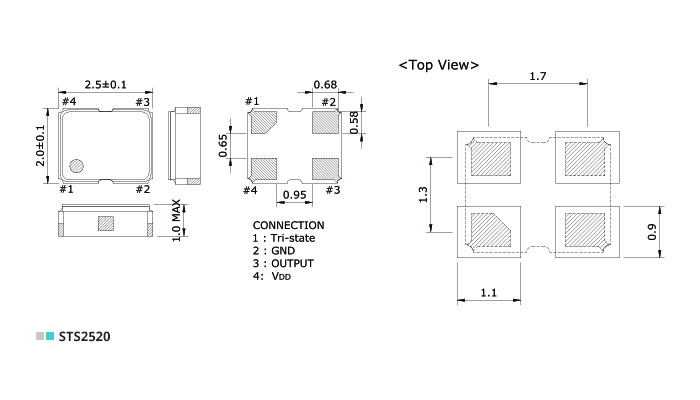

Dimensions[mm]

Wave Form
