STDX5032 Series
Features
- High frequency stability
- Low supply voltage and Low power consumption available
- High reliability
- Applications : Suitable for RF module , Wireless radio system , and GPS application
Description
The STDX5032 Series (Voltage Control)Temperature compensated crystal oscillator achieves superb stability over a broad range of operating conditions and frequencies. The device is available on tape and reel, is contained in a 5.0 x 3.2mm surface-mount ceramic package.
Standard Specifications
Model Item |
STDX5032 Series |
|---|---|
| Frequency Range | 6.000MHz ~ 40.000MHz |
| Frequency Stability | ±1.0ppm ~ ±2.5ppm |
| Operating Temperature Range | -40℃ ~ 85℃ / -20℃ ~ 70℃ / 0℃ ~ 70℃ |
| Storage Temperature Range | -40℃ ~ 85℃ |
| Supply Voltage | 2.5V ~ 3.6V ± 5% |
| Supply Current | 3.3V nominal |
| Frequency Control Range | 1.25V±1.00VDC ~ 1.80±1.00VDC |
| Output Load | 10Kohm//10pF(C.S.W), 1Kohm//15pF(HCMOS) |
| Output Voltage Level | 0.8Vpp (C.S.W) 80%min. 0.5Vmax. (HCMOS) |
| Duty | 40 ~ 60% |
| Start-up Time(90% of Vp-p) | 3.0ms Max. |
| Aging | ±1ppm/Year |

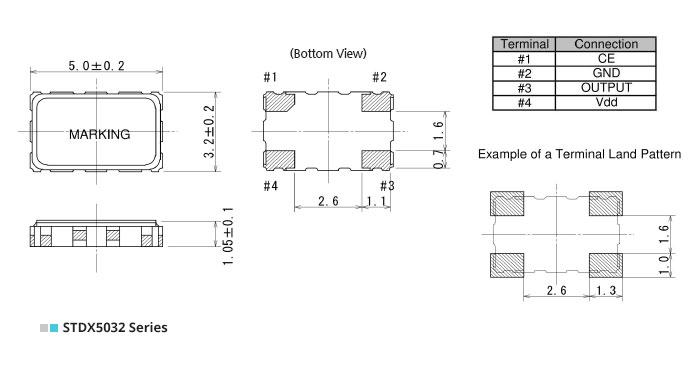

Dimensions[mm]
Measurement Circult
