STPVX7, STLVX7

Features

  • 2.5V or 3.3V Operaing supply voltage
  • Differential output LVPECL, LVDS
  • 3-state function
  • Excellent low phase jitter
  • Applications : Server, SONET, SDH, Optical transmission device, Communication base station

Standard Specification

specification
Model
Item
STPVX7 STLVX7 Unit Limit
Frequency Range 50~600MHz(Fund)
50~400MHz(3rd overtone)
80~600MHz(Fund)
80~400MHz(3rd overtone)
MHz
Package size (L×W×H) 7.0×5.0×1.7 mm
Supply voltage 2.5 or 3.3 V ±5%
Operating temp. range -40 ~ +85
Storage Temp. range -55 ~ +125
Frequency Stability (overall) ±50 , ±100 ppm Max
Frequency deviation ±100 %
Control voltage 1.25±1.05(1.25) , 1.65 ±1.35(1.65) %
Duty cycle 40 ~ 60 (at outputs cross point) %
Output load 50 to Vcc-2V 100
(out-complementary out)
Ω
Current Consumption 80 60 mA Max
Output Level LVPECL LVDS
‘0’ Level (V ol) Vcc-1.81 ~ Vcc-1.62 Vcc Max
'1' Level (V oh) Vcc-1.025 ~ Vcc-0.88 Vcc Min
Rise&Fall Time 1 Max
Phase jitter 1 (offset frequency:12kHz~20MHz) ps Max

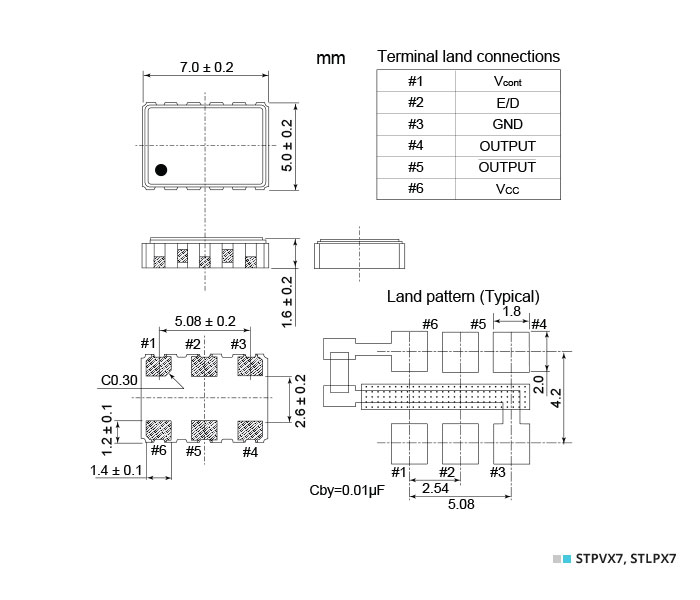

Dimensions[mm]

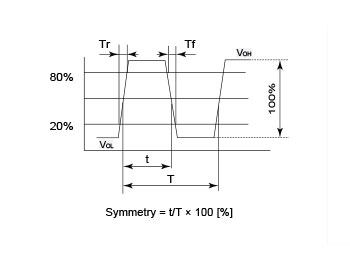

Output waveform (LVPECL)

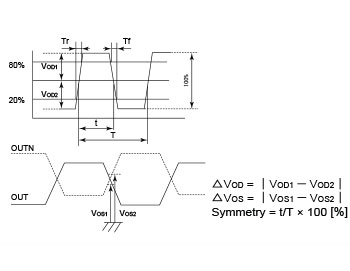

Output waveform (LVDS)

Stand-by Function (LVPECL)

Stand-by Function (LVDS)
