STVX5

Features

  • Voltage Controlled Crystal Oscillator.
  • 2.5V, 3.3V, 5.0V Operaing supply voltage range
  • Mode : Fundamental
  • A compact and thin : 5.0×3.2
  • Output Level : CMOS
  • Operationg temperature range : -40℃ ~ +85℃
  • Applications : Set-top Box, HDTV, WiMAX/WLAN, xDSL/ VoIP, Cable modem

Standard Specification

specification
Model
Item
STVX5 UNIT Limit
Frequency range 4 ~ 60MHz MHz
Package size (L×W×H) 5.0×3.2×1.2 mm
Supply voltage 2.5, 3.3, 5.0 V ±5%
Operating temp. range -40~+85
Storage Temp. range -55 ~ +125
Frequency Stability (overall) ±50 ppm Max
Frequency deviation ±100 ppm Min
Control voltage 2.5 ±2.0 , 1.65 ±1.35 V
Duty cycle 40 ~ 60 %
Output load condition 15 pF Max
Current Consumption 10 : 4 ~ 20M
20(5V) / 15(3.3V,2.5V) : 20 ~ 40M
30(5V) / 25(3.3V,2.5V) : 40 ~ 60M
Max
Output Level CMOS
'0' Level (V ol) 0.1 Vcc Vcc Max
'1' Level (V oh) 0.9 Vcc Vcc Min
Rise & Fall Time 5 Max
Start up time 10 Max
RMS Phase jitter 1 ps Max

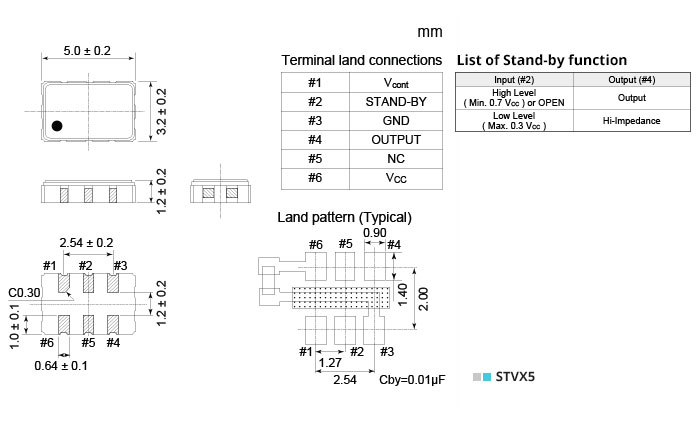

Dimensions[mm]

Test Circuit

Wave Form
